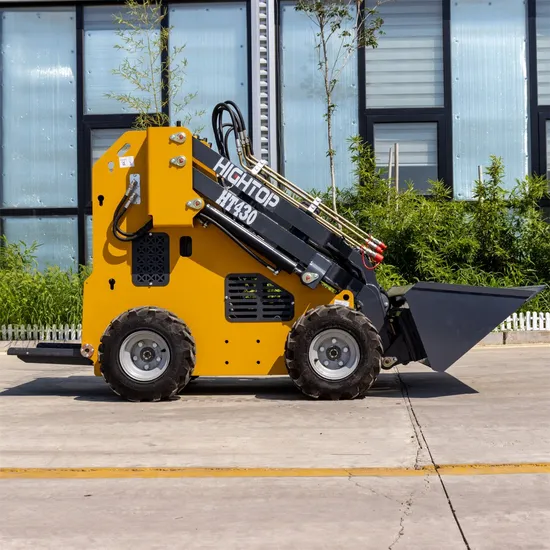

Triangle Crawler Small Skid Steer Front End Loader with Automatic Bucket Leveling Mini Skid Steer Loader Attachment Skidsteer Bagger Mini

Model NO.	HT430
Rated Load	<1t
Transmission	Hydraulic
Load and Unload Mode	Front Discharge
Walking Mode	Crawler
Type	Small Loader
Lifting Capacity	430kgs
Engine Type	Rato/Briggs Stratton 3864
Power	23HP
Rotation Speed Per Minute	3600
Cooling Method	Air-Cooled
Fuel/Fuel Tank Capacity	Gasoline 95#/20L
Drive System	Hydraulic Four-Wheel Drive
Speed(Km/H)	0-7km/H
Enhancement of Capabilities	300kgs
Hydraulic Drive System	50/180
Standard Tires	18*8.5-8
Drive	Skid Steering
Machine Size	260012001350mm
Weight	950kgs
Transport Package	Wooden Box
Specification	4cmb
Trademark	logo
Origin	China
HS Code	8429521200
Production Capacity	10000sets/Year

CE EPA China Manufacturer Wheel Mini Small Skid Steer Loader with Bucket Automatic leveling

CE EPA China Manufacturer Wheel Mini Small Skid Steer Loader with Bucket Automatic leveling

Performance
Model	HT430
Rated loading capacity(KG)	430KGS
Bucket volume(m³)	0.15m³
Max Lifting Capacity KG	375KGS
Speed(km/h)	0-6km/h
Rated Pressure(MPA)	17MPA
Lifting Time(S)	4.3S
Falling Time(S)	3.3S
Tipping time(S)	1.5S
Gradeability(%)	30%
Opertating Weight(KGS)	890KGS
Engine
Engine Type	Rato /Briggs&Stratton Engine with EPA
Type	Gasoline
Output Power	23HP/3600rpm
Fuel consumption(L/H)	≤6.7
Starting Way	Electric Starting
Fuel tank(L)	25L
Engine oil(L)	1.7L
Hydraulic oil tank capacity(L)	25L
