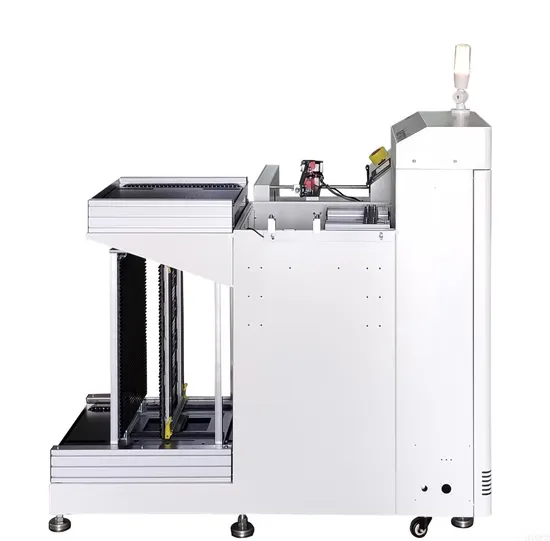

Courtesy of Easterson Corporation SMT Automatic Machine PCB Loader

• Overview
• Product introduction
• characteristics
• Company Profile
• Honor for the company
• Company′s exhibition
• Packaging & Shipping

Basic Info.

Packaging & Delivery

Product Description

THIS DEVICE IS APPLIED TO THE FEEDING OPERATION OF SMT PRODUCTION LINE CIRCUIT BOARDS

1. Closed sheet metal and aluminum alloy structure to ensure the highest safety protection 2. Ensure that the anti-static material frame is placed on the board, while meeting the board feeding operation of double-sided panels and bare boards. 3. Easy-to-use touch screen operation with automatic fault diagnosis function Bot Information Dynamics 4. Stable and balanced width adjustment device (hand screw adjustment) 5.PCL microcomputer control system, stable and reliable operation 6. The lifting step distance of the material rack can be set according to the thickness of the PCB board. 7. Three-point positioning type upper and lower pneumatic clamping ensures the accurate position of the material box. 8. Push plate protection system ensures that the PCB board will not be pushed and damaged, reducing process losses. 9. Small footprint, compatible with SMEMA interface

1.SMT loading machine closed sheet metal and aluminum alloy design 2. Standard anti-static material frame, which can meet both double-panel and bare board feeding. 3. Touch screen control interface, set parameters and it will operate automatically. 4. Panasonic PLC industrial control system, stable and reliable, with fault diagnosis and alarm function 5. Three-point positioning type up and down pneumatic tightening to ensure accurate position of the material frame 6. The width of the guide rail can be adjusted to allow the maximum size of the pcb board 530x460mm 7. It occupies a small area and does not affect the modification of other production lines and other equipment.

Features: ·Exterior structure: sheet metal structure and aluminum profile into the frame, surface spray treatment, color is white, 1. Microcomputer PLC control system, stable and reliable operation. Touch screen display operation, automatic fault diagnosis function, convenient human-machine dialogue. Multiple sound, light and touch screen prompt alarm functions, ·The material rack lifting step can be set according to the PCB thickness 2. It has automatic counting function to facilitate production statistics. ·Humanized design ensures that the PCB board will not be pushed through and improves output capacity
